| CPU |
LGA775 for Intel® Core™ 2 Extreme dual-core / Core™ 2 Duo / Pentium® processor Extreme Edition / Pentium® D / Pentium® 4 / Celeron® D |
| Supports 1066/800/533MHz FSB |
| Chipset |
Northbridge: Intel® 945G Express Chipset |
| Southbridge: Intel® ICH7/ICH7M |
| Memory |
Supports DDR2 533/667/800 memory |
| Dual Channel architecture support up to 4GB by 2 DIMM slots |
| Graphics |
Intel® Graphics Media Accelerator 950 |
| 1*VGA port |
| Audio |
Realtek ALC662 6 Channel Audio Codec |
| LAN |
Realtek 8105E 10/100M LAN Controller |
| Expansion slots |
1*PCI Express X16 slot |
| 1*PCI slot |
| I/O connectors |
1*IDE connector |
| 4 / 2 3.0Gb/s SATA connector |
| 1*front panel connector |
| 1*front audio connector |
| 4*USB 2.0/1.1 connector |
| 4*USB 2.0/1.1 port |
| 1*COM port |
| 1*PS/2 port |
| 1*VGA port |
| 1*RJ-45 port |
| 1*LPT port |
| 1*audio jacks |
| Form Factor |
210 x 170mm |
| Packing Include |

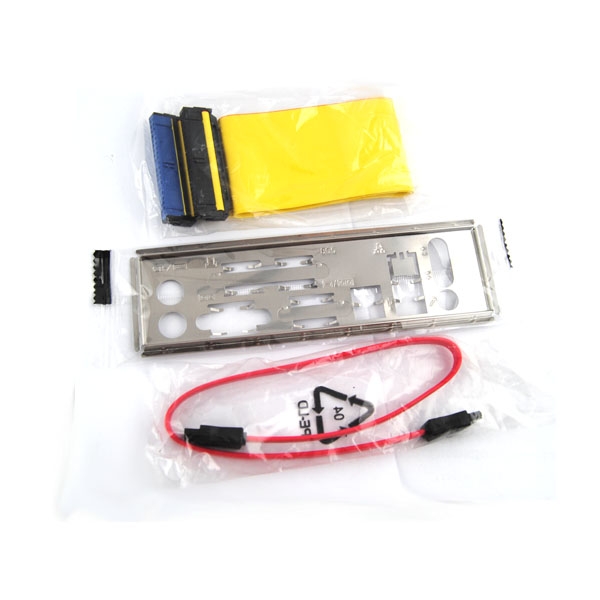

1*motherboard;1*SATA Cable;1*Mainboard Driver;1*baffle;1*User Manual;1*IDE Cable |
