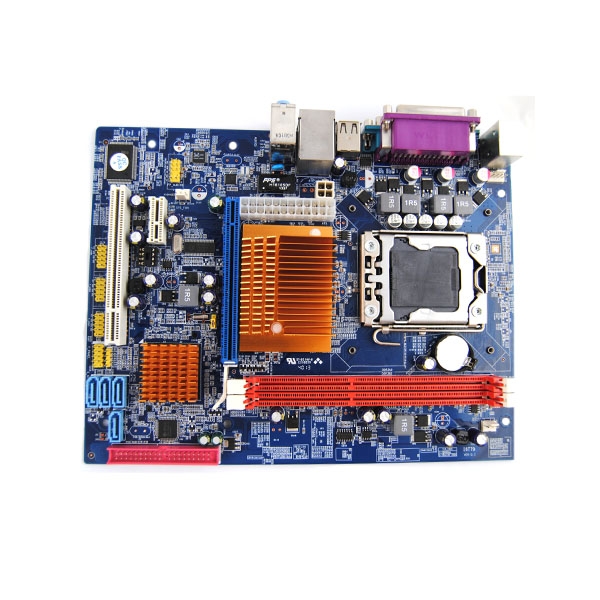

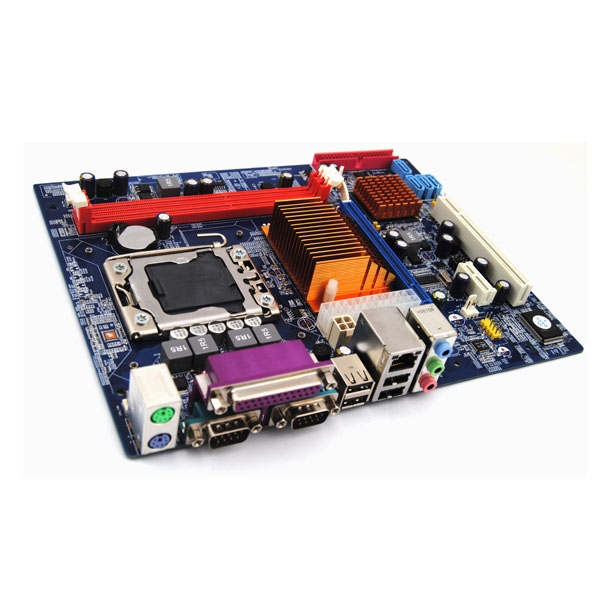

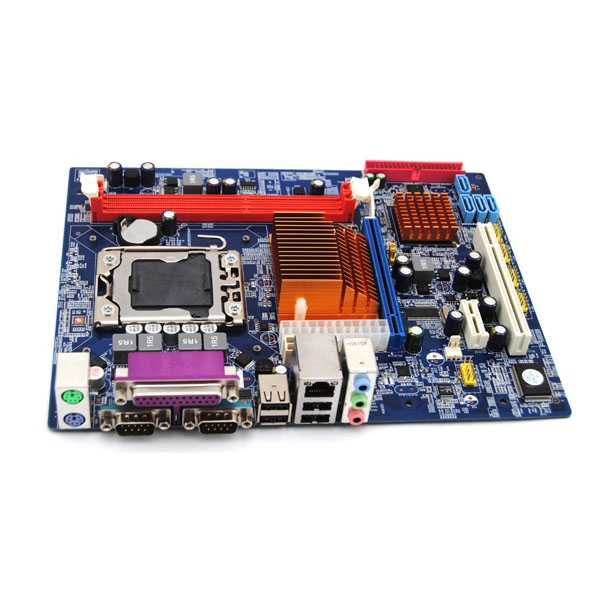

desktop computer motherboard ddr3 1333 1066 800 lga1366
- Supports DDR3 1333/1066/800 memory
- X58+ICH10 chipset
- Realtek 8105E/8111E 100M/1000M LAN Controller
- enjoy 1 year warranty
Specifications:
| CPU | Supports LGA1366 Intel® Core™ i7 / LGA1366 Intel® XEON |
| Chipset | Intel® X58+ICH10 |
| Memory | Supports DDR3 1333/1066/800 memory |
| Dual Channel architecture support up to 16GB by 2 DIMM slots | |
| Audio | Realtek ALC662 6 Channel Audio Codec |
| LAN | Realtek 8105E/8111E 100M/1000M LAN Controller |
| Expansion slots | 1*PCI Express X16 slot |
| 1* PCI Express X1 slot | |
| 1*PCI slot | |
| I/O connectors | 1*IDE connector(Optional) |
| 4* SATA 3Gb/s connector | |
| 1*front panel connector | |
| 1*front audio connector | |
| 2*USB 2.0/1.1 connector | |
| 8*USB 2.0/1.1 port | |
| 1*2 COM port | |
| 1*PS/2 port | |
| 1*RJ-45 port | |
| 1*LPT port | |
| 1*audio jacks | |
| Form Factor | 242 x 178mm |

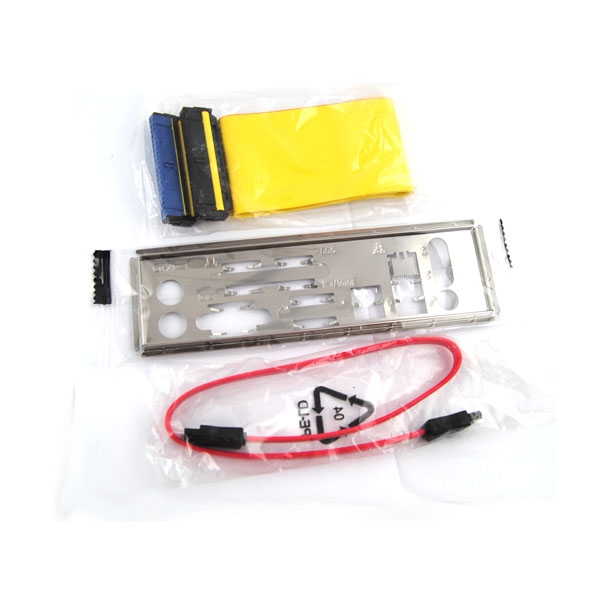

| Packing Include | 1*motherboard;1*SATA Cable;1*Mainboard Driver;1*baffle;1*User Manual;1*IDE Cable(optianal) |
