| CPU |
LGA775 for Intel® Core™ 2 Extreme quad-core / Core™ 2 Extreme dual-core / Core™ 2 Quad / Core™ 2 Duo / Pentium® processor Extreme Edition / Pentium® D / Pentium® 4 / Celeron® D |
| LGA771 for Intel® Xeon® Processor 51XX / 52XX / 53XX / 54XX Series (Optional) |
| Supports 1333/1066/800/533MHz FSB |
| Chipset |
Northbridge: Intel® G41 Express Chipset |
| Southbridge: Intel® ICH9/ICH10 |
| Memory |
Supports DDR3 1333/1066 memory |
| Supports DDR2 800/667 memory |
| Dual Channel architecture support up to 8GB by 2 DIMM slots |
| Graphics |
Intel® Graphics Media Accelerator 4500 |
| 1*VGA port |
| Audio |
Realtek ALC662 6 Channel Audio Codec |
| LAN |
Realtek 8105E/8111E 100M/1000M LAN Controller |
| Expansion slots |
1*PCI Express X16 slot |
| 2*PCI slot |
| I/O connectors |
4* SATA 3Gb/s connector / 3SATA+1* IDE connector |
| 1*front panel connector |
| 1*front audio connector |
| 6*USB 2.0/1.1 connector |
| 6*USB 2.0/1.1 port |
| 1*COM port |
| 1*PS/2 port |
| 1*VGA port |
| 1*RJ-45 port |
| 1*audio jacks |
| Form Factor |
240 x 185mm |
| Packing Include |

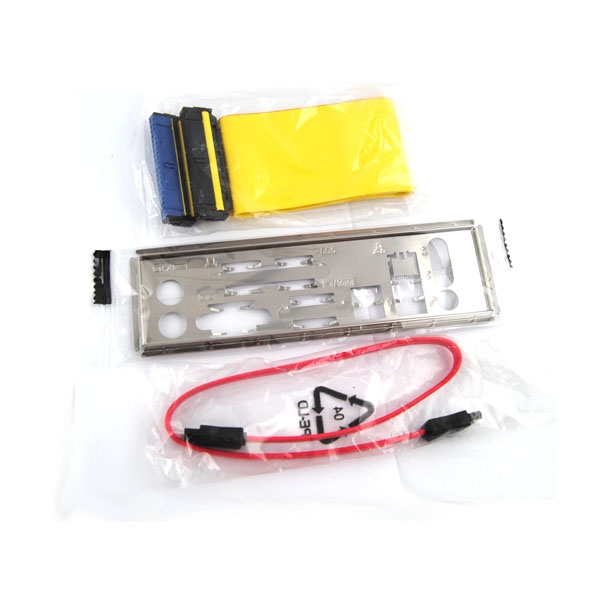

1*motherboard;1*SATA Cable;1*Mainboard Driver;1*baffle;1*User Manual;1*IDE Cable |
