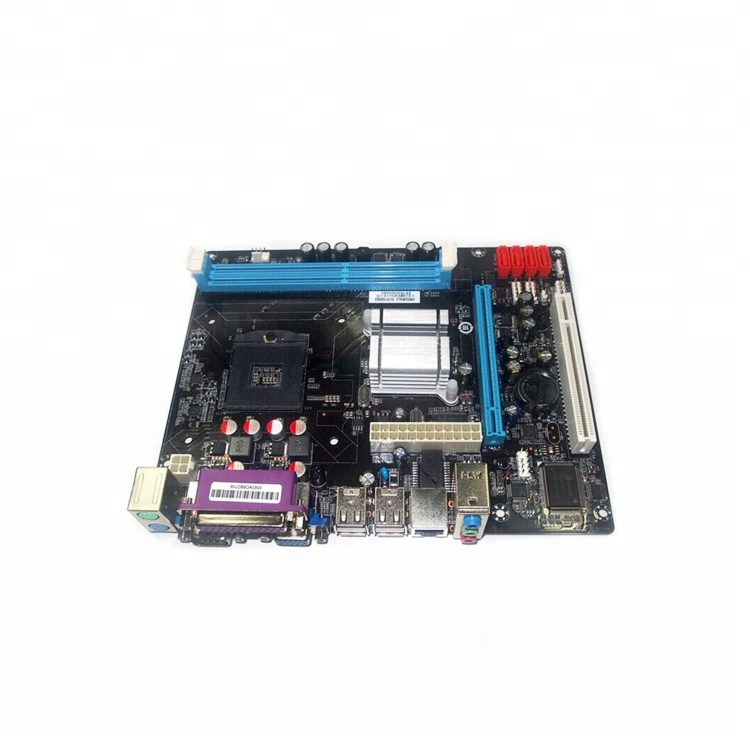

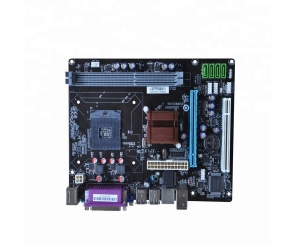

Shenzhen factory custom ddr3 socket 1156 hm55 motherboard

Shenzhen factory custom ddr3 socket 1156 hm55 motherboard

  • CPU
  • --    Support for Intel® Core™ Mobile i7 series / Intel® Core™ Mobile i5 series  / Intel® Core™ Mobile i3 series PGA988 Processor
  • Chipset
  • --    Intel® HM55 Express Chipset
  • Memory
  • --    Supports DDR3 1600/1333/1066 memory
  • --    Dual Channel architecture support up to 8GB by 2 DIMM slots
  • Graphics
  • --   Intel® HD Graphics
  • --   1x HDMI port
  • --   1x VGA port
  • Audio
  • --  Realtek ALC662 6 Channel Audio Codec
  • LAN
  • --    Realtek 8105E/8111E 100M/1000M LAN Controller
  • Expansion Slots
  • --  1x PCI Express X16 slot
  • --  1x PCI Express X1 slot
  • I/O Connectors
  • -- 4x SATA 3Gb/s connector
  • -- 1x  front panel connector
  • -- 1x  front audio connector
  • -- 4x USB 2.0/1.1 connector ;  4x USB 2.0/1.1 port
  • -- 1x COM port
  • -- 1x HDMI port
  • -- 1x PS/2 port
  • -- 1x VGA port
  • -- 1x RJ-45 port
  • -- 1x audio jacks
  • Form Factor
  • -- 210 x 170mm
