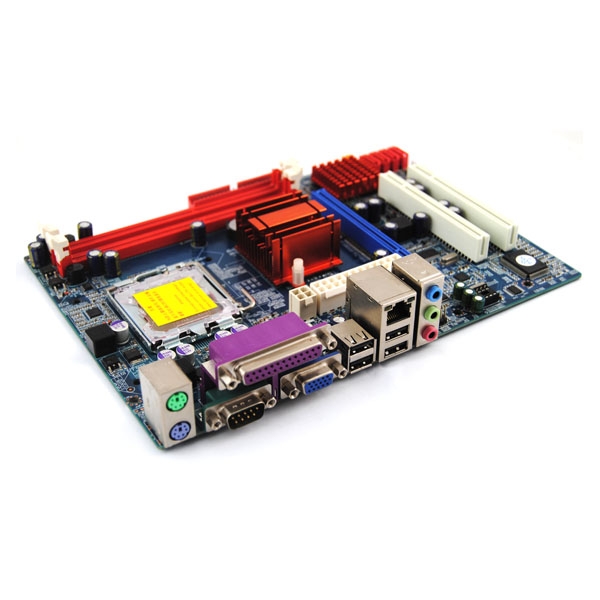

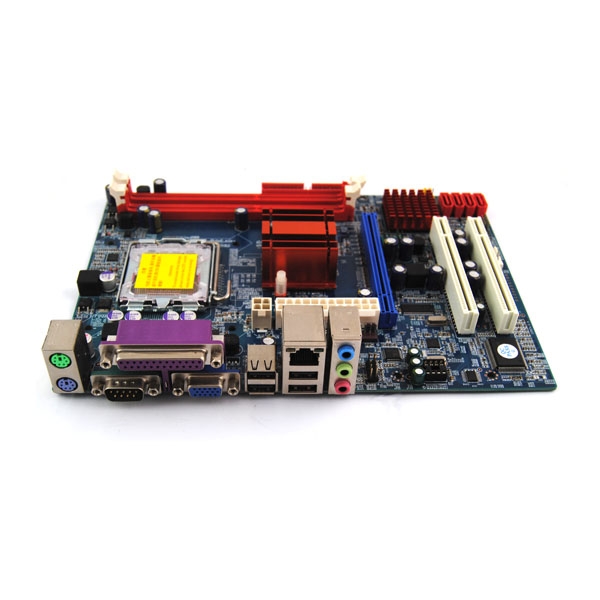

socket 775 ddr3 motherboard g41 support DDR3 1333/1066 memory
- G41 Express Chipset
- Dual Channel architecture support up to 8GB by 2 DIMM slots
- Supports DDR3 1333 1066 memory
- Enjoy 1 year warranty
Specifications:
| CPU | LGA775 for Intel® Core™ 2 Extreme quad-core / Core™ 2 Extreme dual-core / Core™ 2 Quad / Core™ 2 Duo / Pentium® processor Extreme Edition / Pentium® D / Pentium® 4 / Celeron® D |
| LGA771 for Intel® Xeon® Processor 51XX / 52XX / 53XX / 54XX Series (Optional) | |
| Chipset | Northbridge: Intel® G41 Express Chipset |
| Southbridge: Intel® ICH6 | |
| Memory | Supports DDR3 1333 1066 memory |
| Dual Channel architecture support up to 8GB by 2 DIMM slots | |
| Graphics | Intel® Graphics Media Accelerator 4500 |
| 1*VGA port | |
| Audio | Realtek ALC662 6 Channel Audio Codec |
| LAN | Realtek 8105E 10/100M LAN Controller |
| Expansion slots | 1*PCI Express X16 slot |
| 2*PCI slot | |
| I/O connectors | 4* SATA 1.5Gb/s connector+1* IDE connector |
| 1*front panel connector | |
| 1*front audio connector | |
| 4* USB 2.0/1.1 connector + 4* USB 2.0/1.1 port | |
| 1*COM port | |
| 1*PS/2 port | |
| 1*VGA port | |
| 1*RJ-45 port | |
| 1*LPT port | |
| 1*audio jacks | |
| Form Factor | 240 x 170mm |

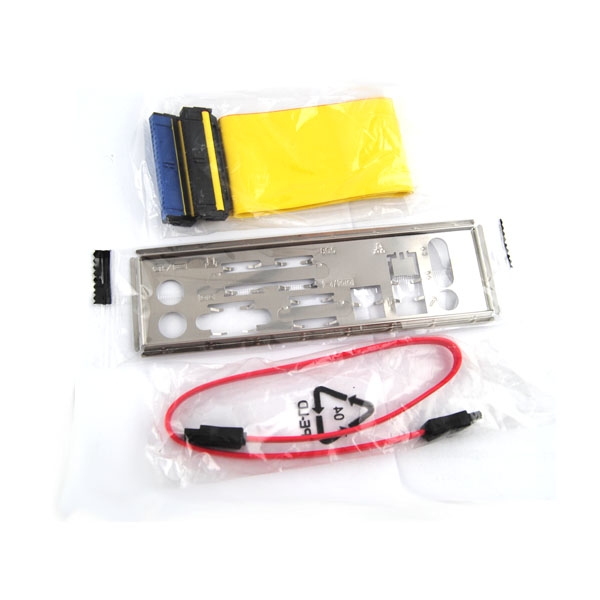

| Packing Include | 1*motherboard;1*SATA Cable;1*Mainboard Driver;1*baffle;1*User Manual;1*IDE Cable |
