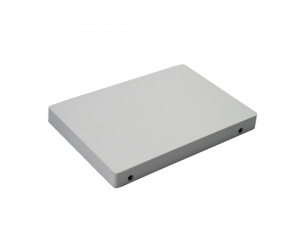

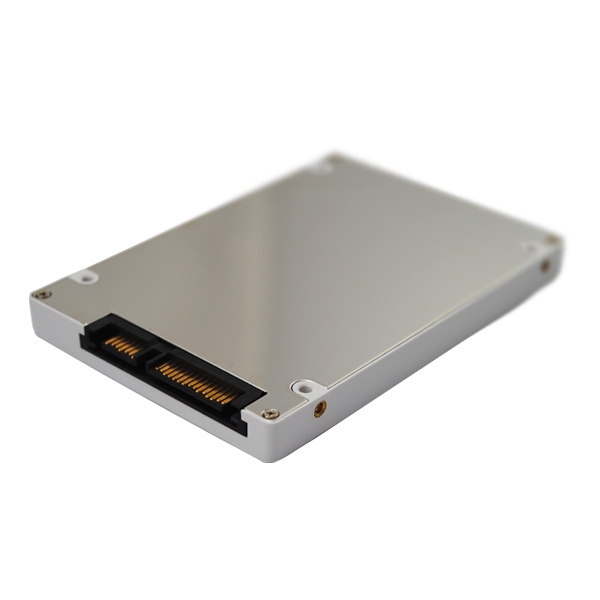

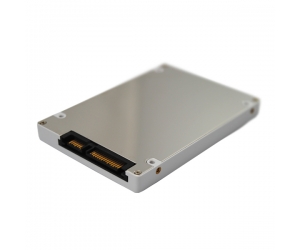

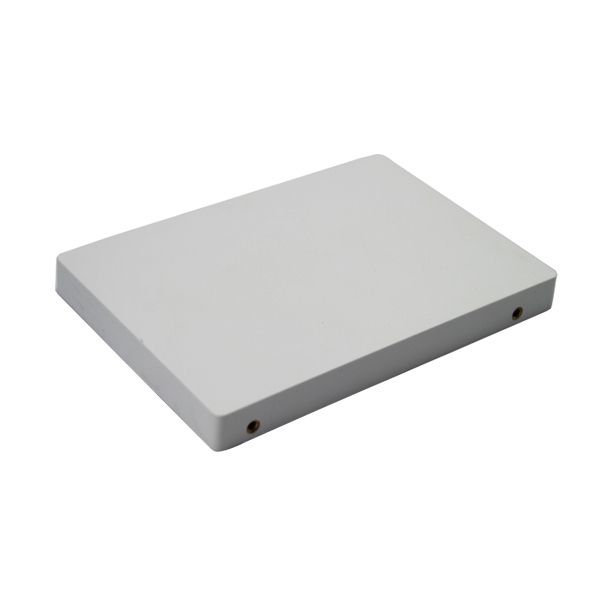

ssd 480gb with SATA3 SM2246EN

  • SATA3 SM2246EN
  • mlc nand flash
  • 2.5INCH SSD
  • 528MB/s Sequential Read

Control chip

SM2246EN

Interface

SATAIII

Capacity

480GB

Cache

128MB

Flash type

MLC NAND Flash

Sequential Read

528MB/s

Sequential Write

406MB/s

4KB Random Read IOPS

70000

4KB Random Write IOPS

3000

Response Time

0.2ms

Power Supply

5V+5%

Standby

0.3W

Maximum Ripple

70 mV(peak to peak)

4KB Random Write

2.5W

Write endurance:

8 years @ 100G write/day(32G)

Read endurance:

unlimited

MTBF:

>2,000,000 hours

Data retention:

>20years @ 25°C

Data destroy support

no

Sudden power-off  recovery support

yes

NCQ support

yes

Trim support

yes

Dynamic power management support

yes

SMART support

yes

ECC:

Supports BCH ECC 12/14/40 bits in 1024 bytes

Static and dynamic wear-leveling

yes

Bad block management algorithm

yes

Storage temperature:

-55~95 °C

Operation temperature:

-0~55°C

Vibration

15G (10 to 2000Hz)

Certification

CE,ROHS,FCC,TUV

Testing platform

CPU:

Intel® Core(TM) i5-2400 CPU @ 3.10GHz

Chipset:

Intel® Z68 Express Chipset

Memory:

KHX1600C9D3C1K2/4GX

OS:

Microsoft Windows 7 Professional 64-bit

AHCI Driver:

AHCI Mode



Testing software

Crystal Disk Mark 3.0

HD Tune Pro 3.5

ATTO Disk Benchmark

Iometer2008  AS_SSD Benchmark

Physical Size

100*70*9.5 mm

Weight

80g

warranty

3 years
