| CPU |
Supports LGA1366 Intel® Core™ i7 / LGA1366 Intel® XEON |
| Chipset |
Intel® X58+ICH10 |
| Memory |
Supports DDR3 1600/1333/1066MHZ memory |
| Dual Channel architecture support up to 16GB by 2 DIMM slots |
| Audio |
Realtek ALC662 6 Channel Audio Codec |
| LAN |
Realtek 8105E/8111E 100M/1000M LAN Controller |
| Expansion Slots |
1xPCI Express X16 slot |
| 1xPCI Express X1 slot |
| 1x PCI slot |

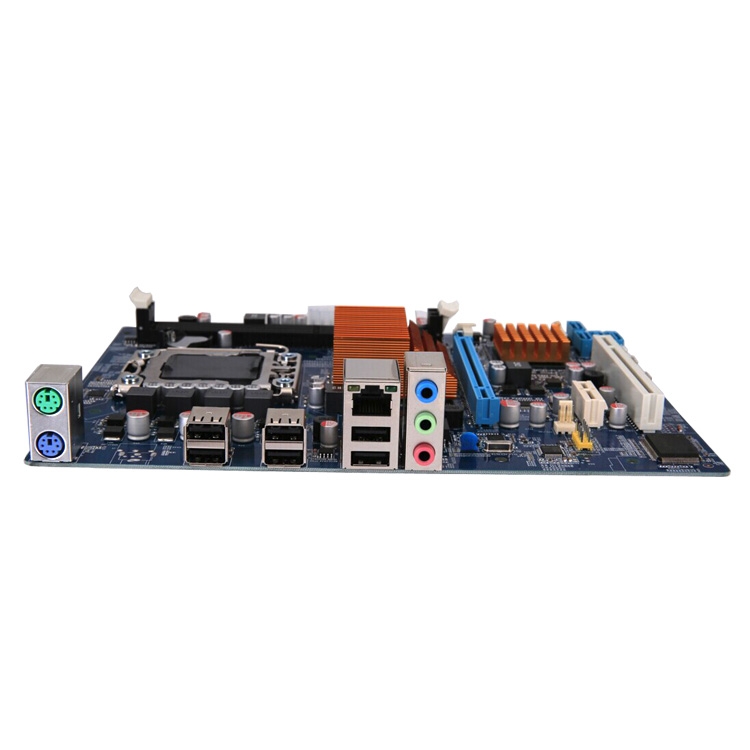

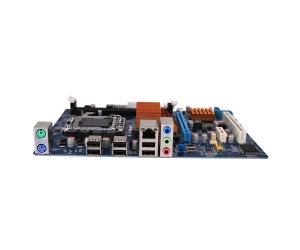

| I/O Connectors |
4xSATA 3Gb/s connector |
| 1xIDE connector (Optional) |
| 1xfront panel connector |
| 1xfront audio connector |
| 2xUSB 2.0/1.1 connector; 8xUSB 2.0/1.1 port |
| 1xPS/2 port |
| 1x2 COM port |
| 1xLPT port |
| 1xRJ-45 port |
| 1xaudio jacks |
| Form Factor |
242 x 188mm |
| Accessories |
1x motherboard;1x SATA Cable;1x Mainboard Driver;1x baffle;1x User Manual;1x IDE Cable(optional) |
